Chassis Material: Extra Fully Hot Dip Galvanized chassis
Main Side Chassis rail : 4mm Special RHS+3mm reinforcement
Vertical support: 40*40*4mm RHS
Draw bar: 100x 50x 4mm RHS
Body Panel : Double Side Galvanized Steel Sheet
Roof : Special Molded FRP
Nuts& Bolts: Stainless Steel
Wheels& Tyres: Wheel Rim 15′ Aluminum Alloy Rims
Tyres: Five 195R-70R 15LT Tyres (includes a spare tyre)

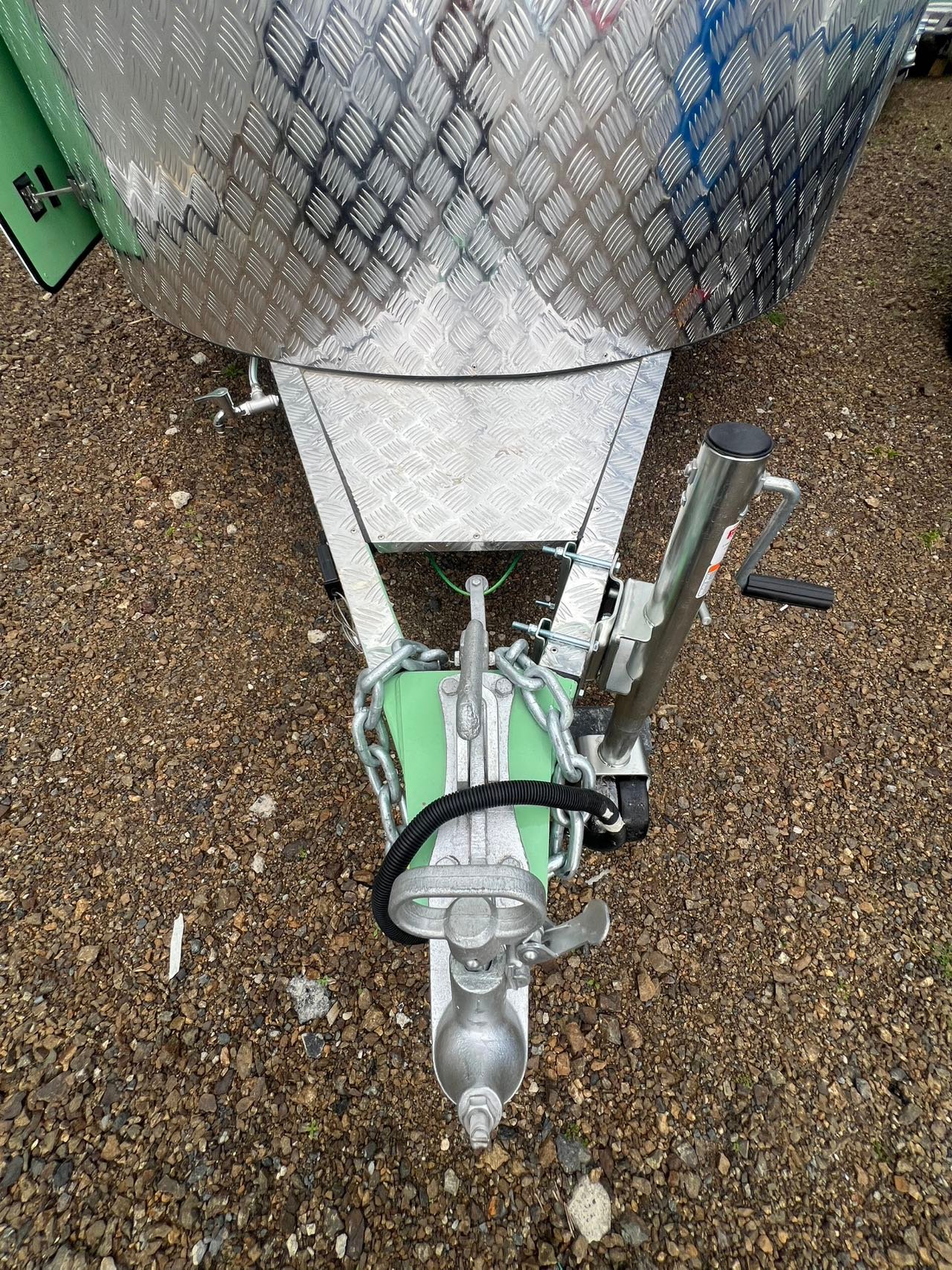

Draw Bar Couplings: 50mm Ball Coupling
Drawbar Checker Plate: Aluminum Checker Plate
Drawbar Safety Chain : included
Jockey wheel: Heavy duty swing up jockey wheel
Floor & Rubber Matting
Floor: 18mm Whole sheet TUFF Board & 10mm whole sheet Rubber Matting
Internal side board: whole sheet TUFF Board & aluminum board
Outside Flooring of ramp door : 15mm whole sheet TUFF Board & whole sheet 15mm Rubber Matting
Suspensions& Axles
Axles: Two Special Axles50x50mm
Leaf Springs : 8 Leaf Tandem Rocker Roller Suspension Spring
Brake System : Double axle electric brakes, front axle also with hand brake Brake away system included
Windows& Doors

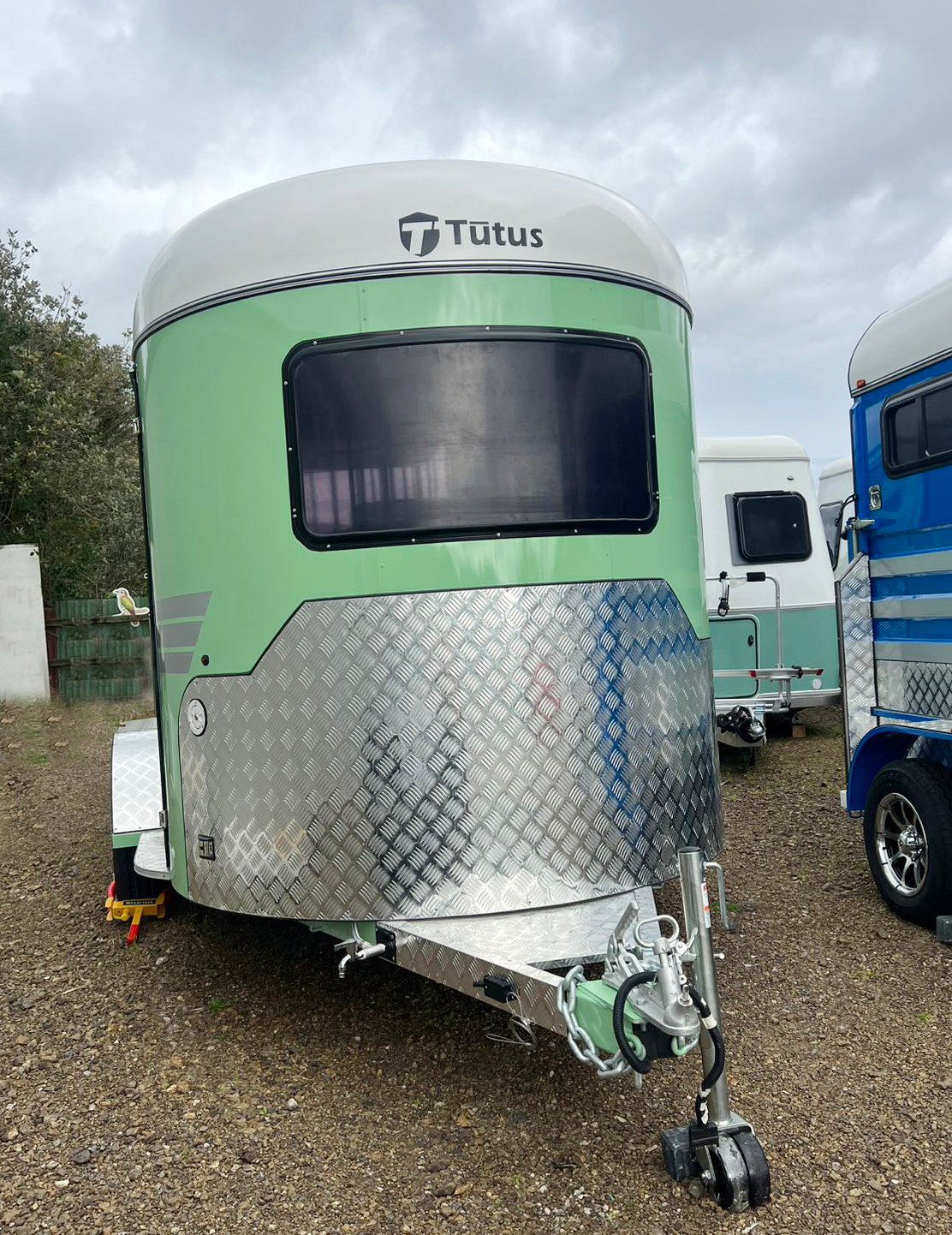

Front Window: 1220x 610mm
Side Windows : 5 slide windows
Vents :Two large size double-open skylights
Side Door :1675x 615mm
Dust Door :1980x 1065mm

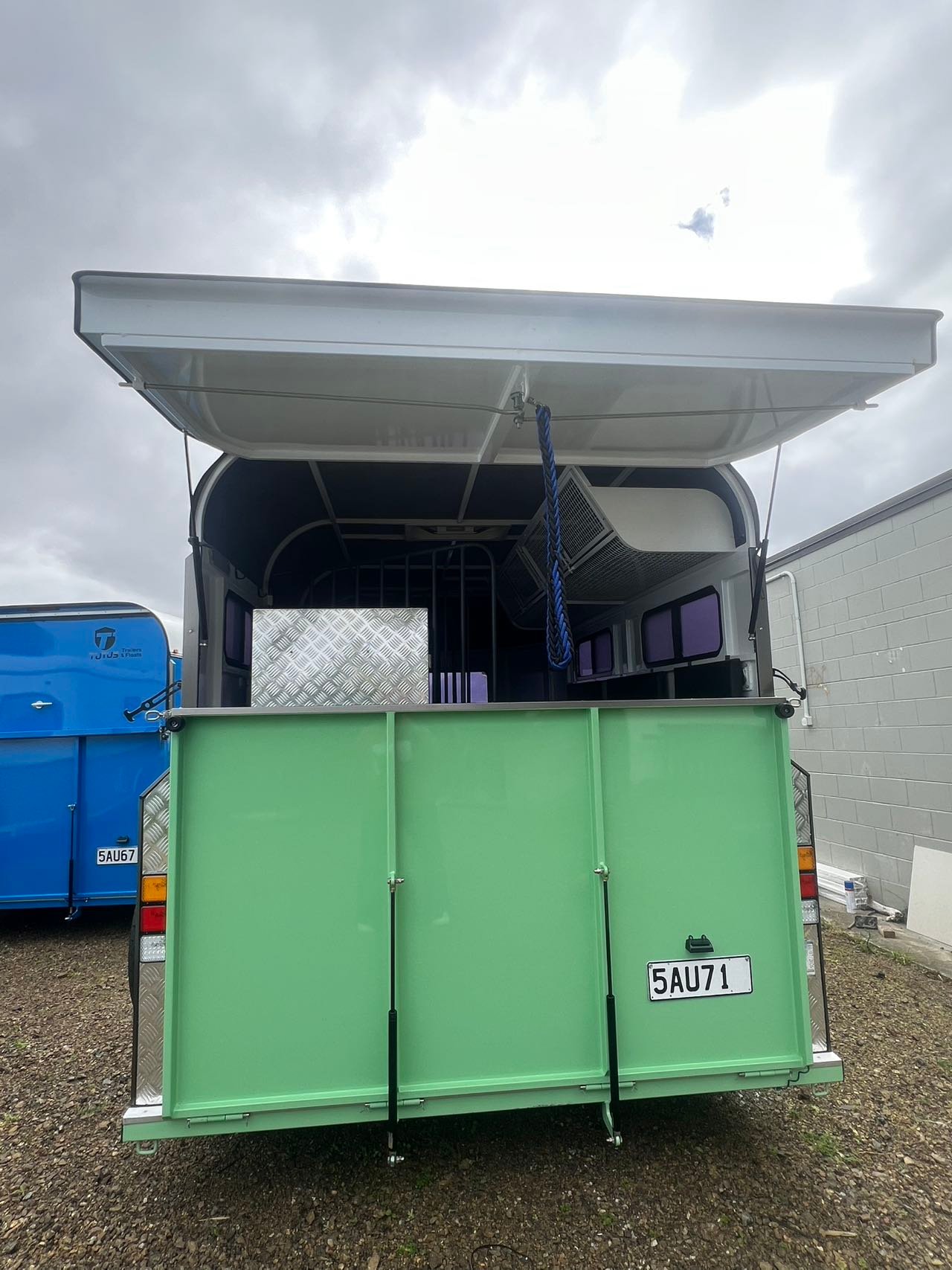

Ramp Door: 2030x 1210mm
Ramp Door: Strut High-intensity Anti-rust Strut
Hinges For Dust Door Special 6mm diameter copper hinges
Electrical & Lighting
Lighting: Full LED lighting, interior 2, Width Lights, License Plate light Side marker lamps
Wiring: AS/NZ standard 7-pin plug, fully insulated cabling
Mudguard
Mudguard Type: External Mudguards
Mudguard Checker Plate: Aluminum Checker Plate
Horse Protection Frame : Fully Padded

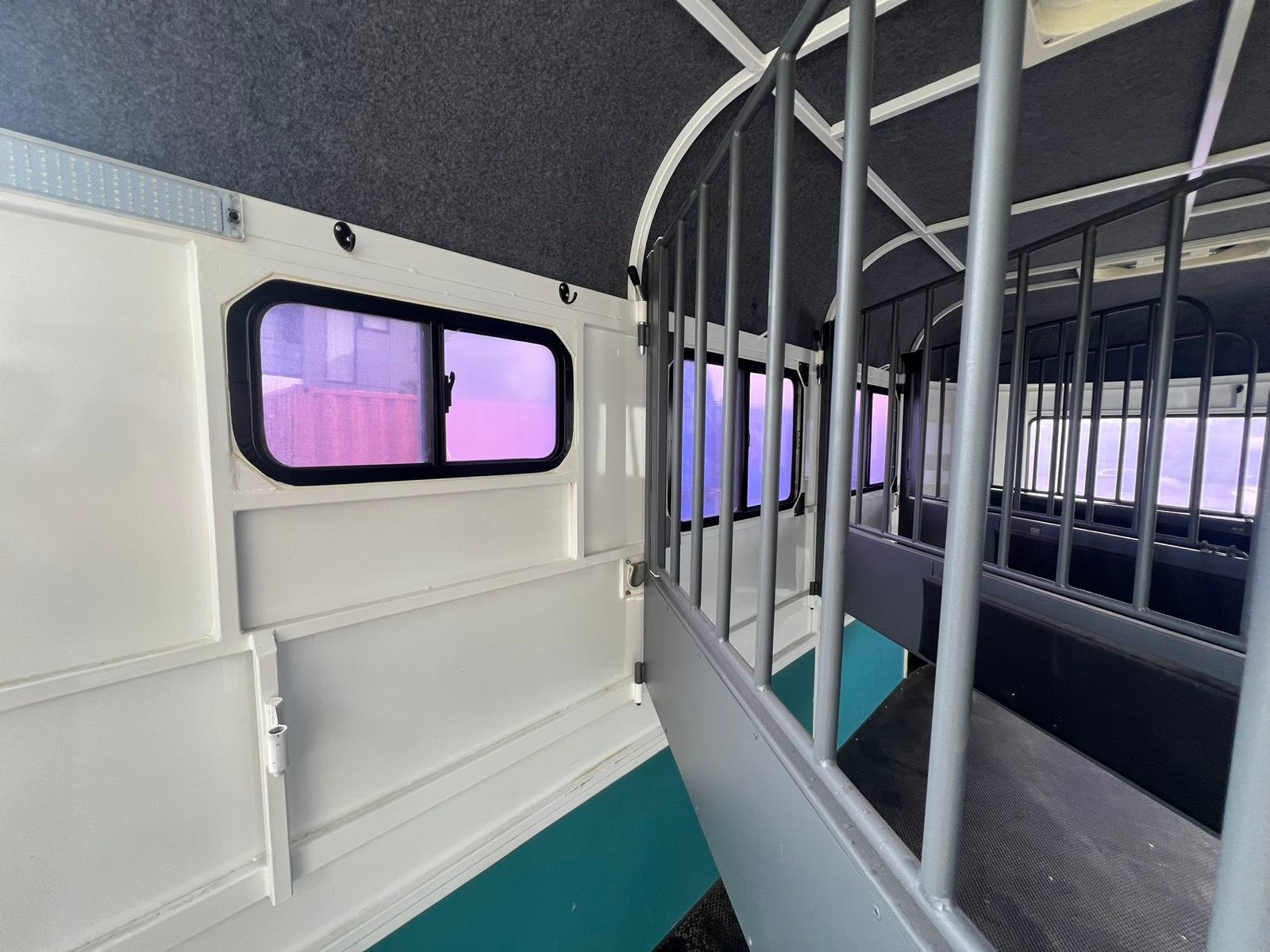

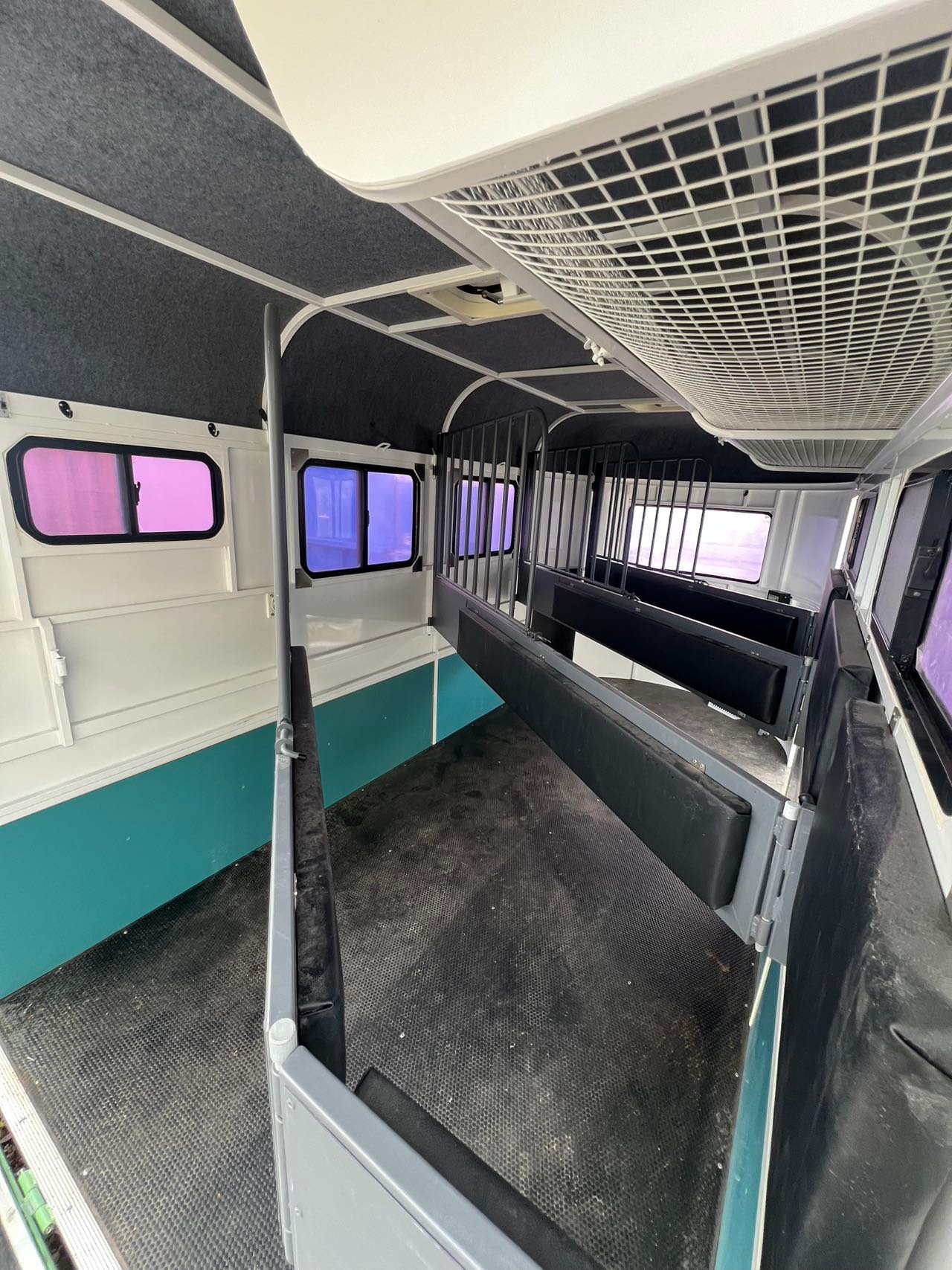

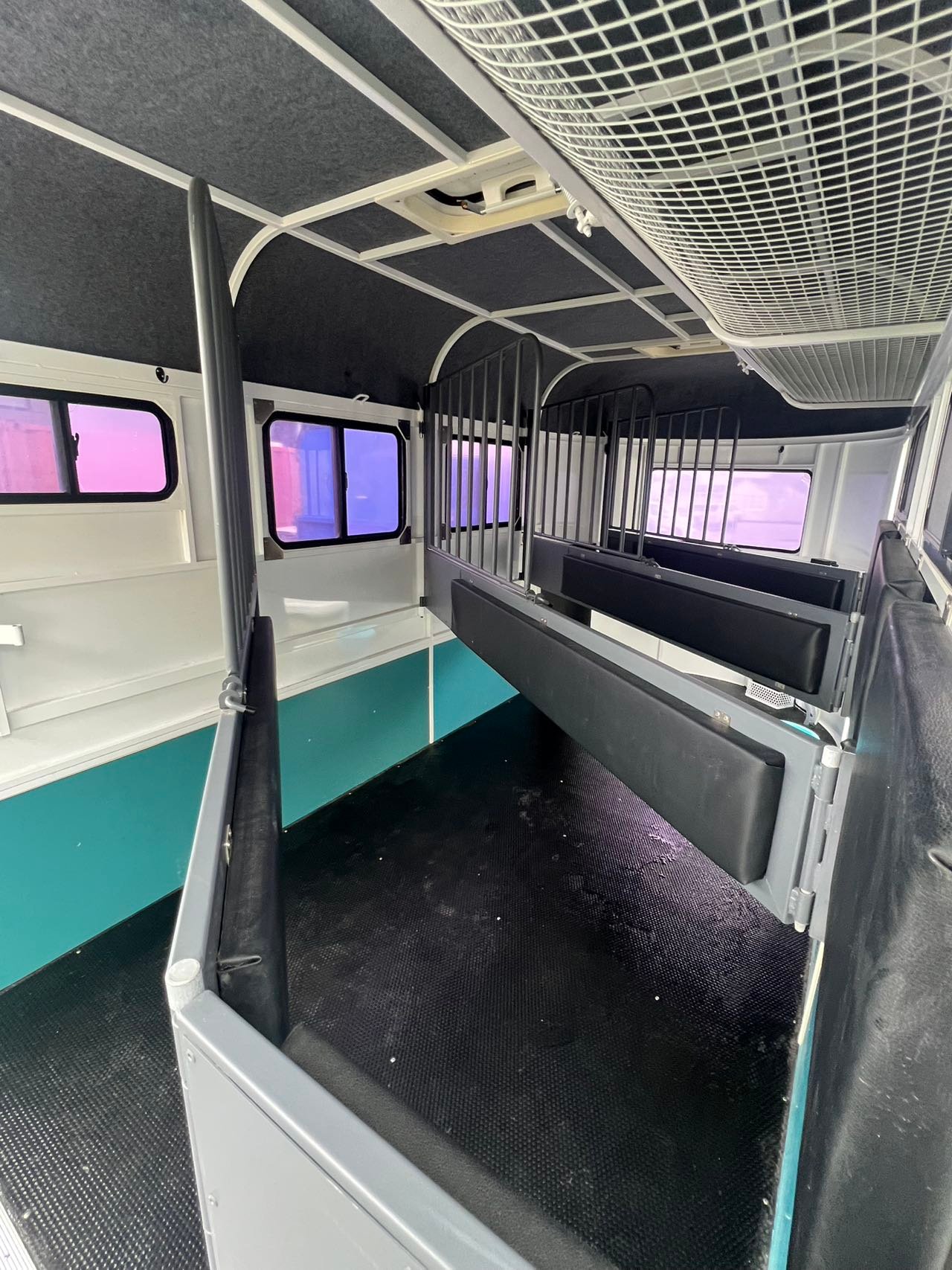

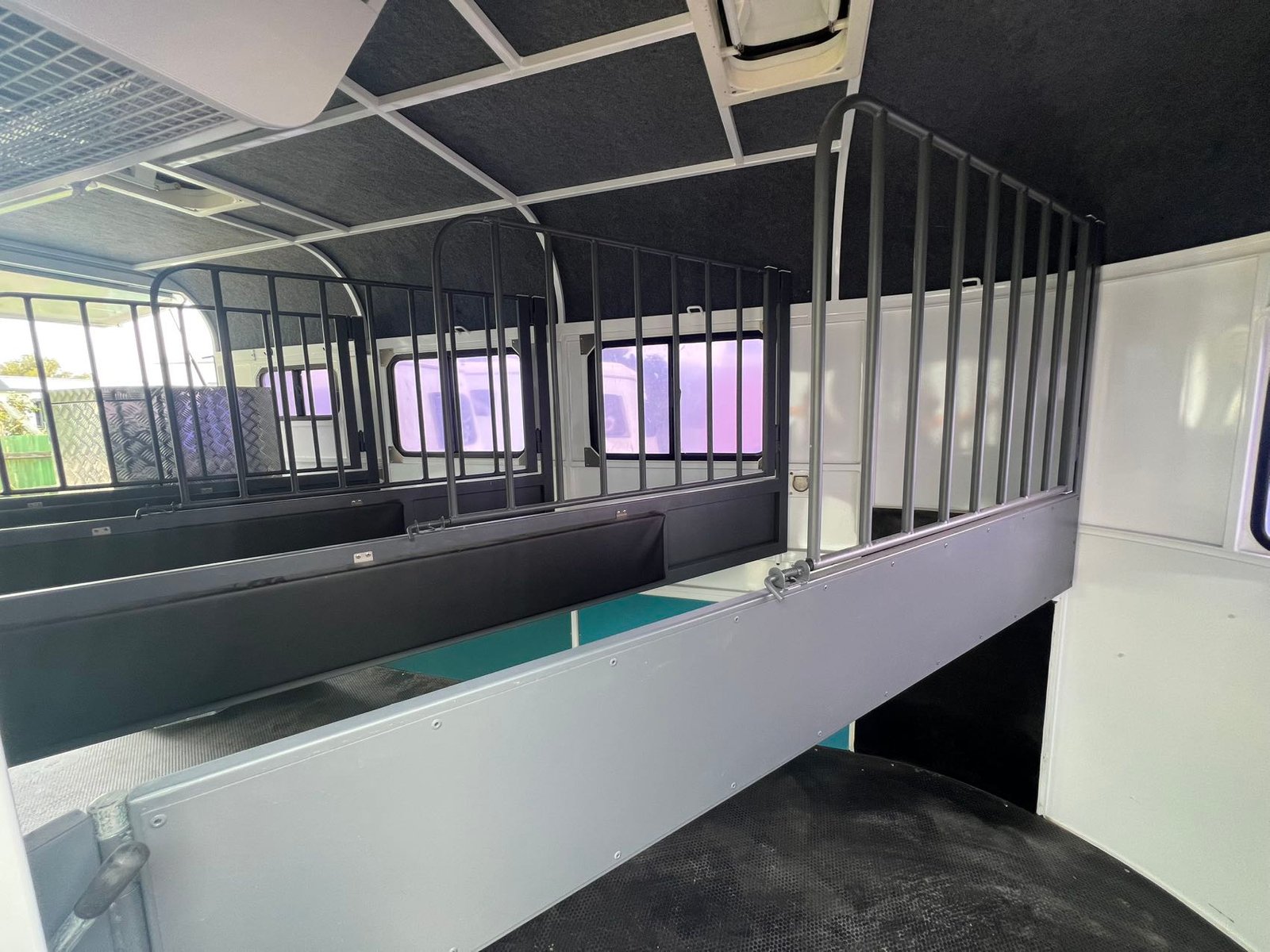

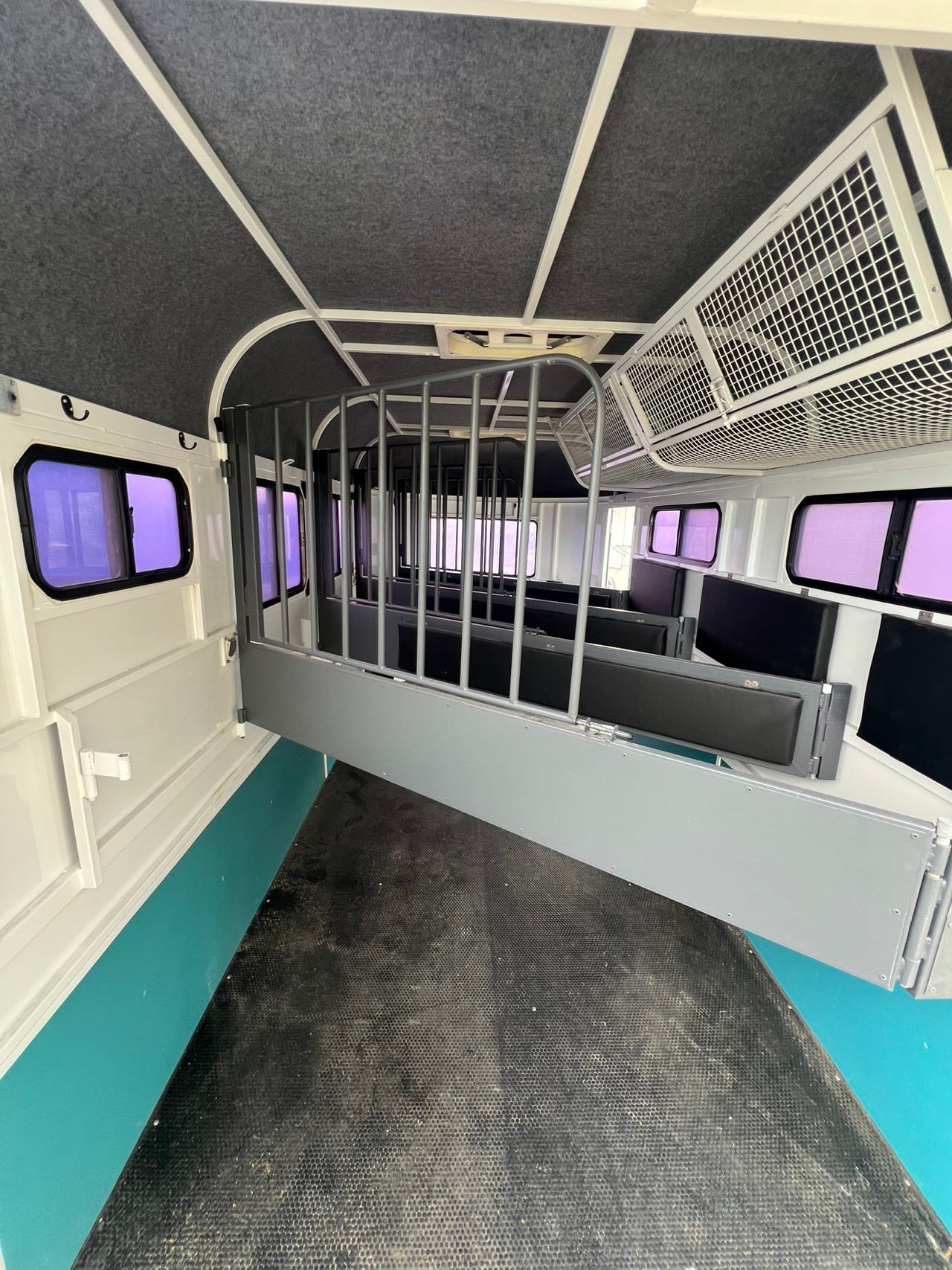

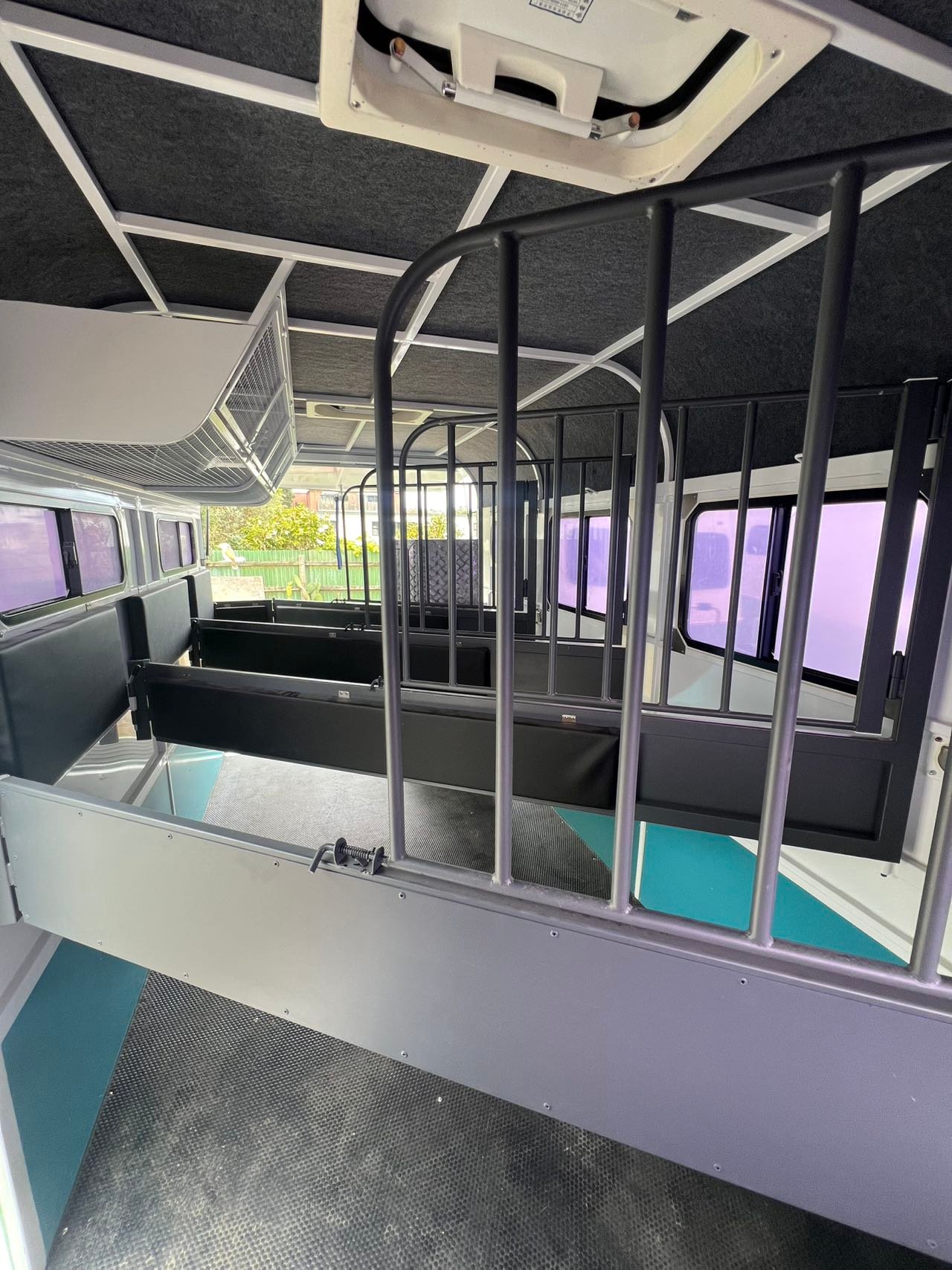

Horse Bay: 3-position adjustable horse stall, suitable for horses of different sizes.
Horse Ring: 3 Internal & 4 Outside

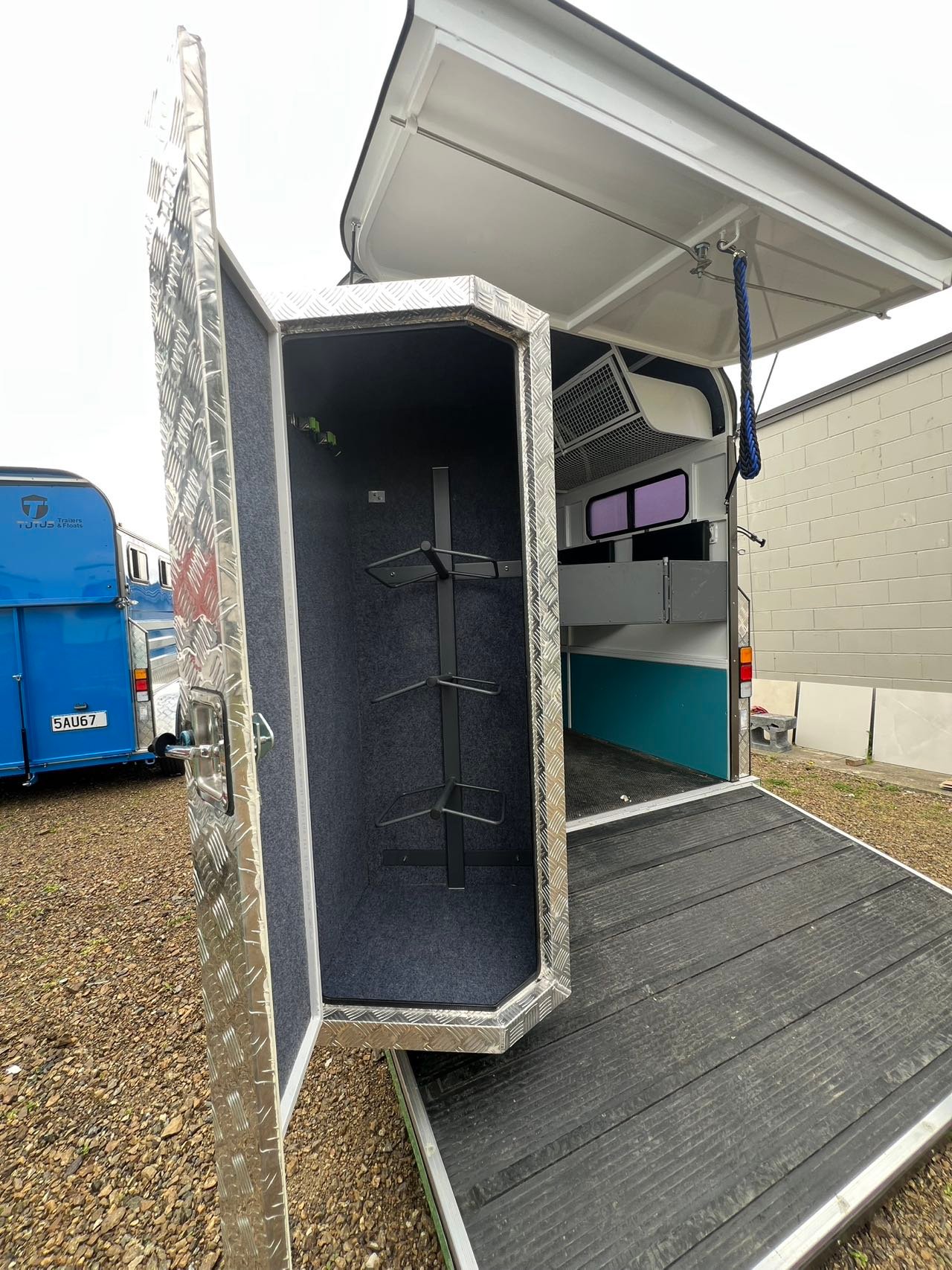

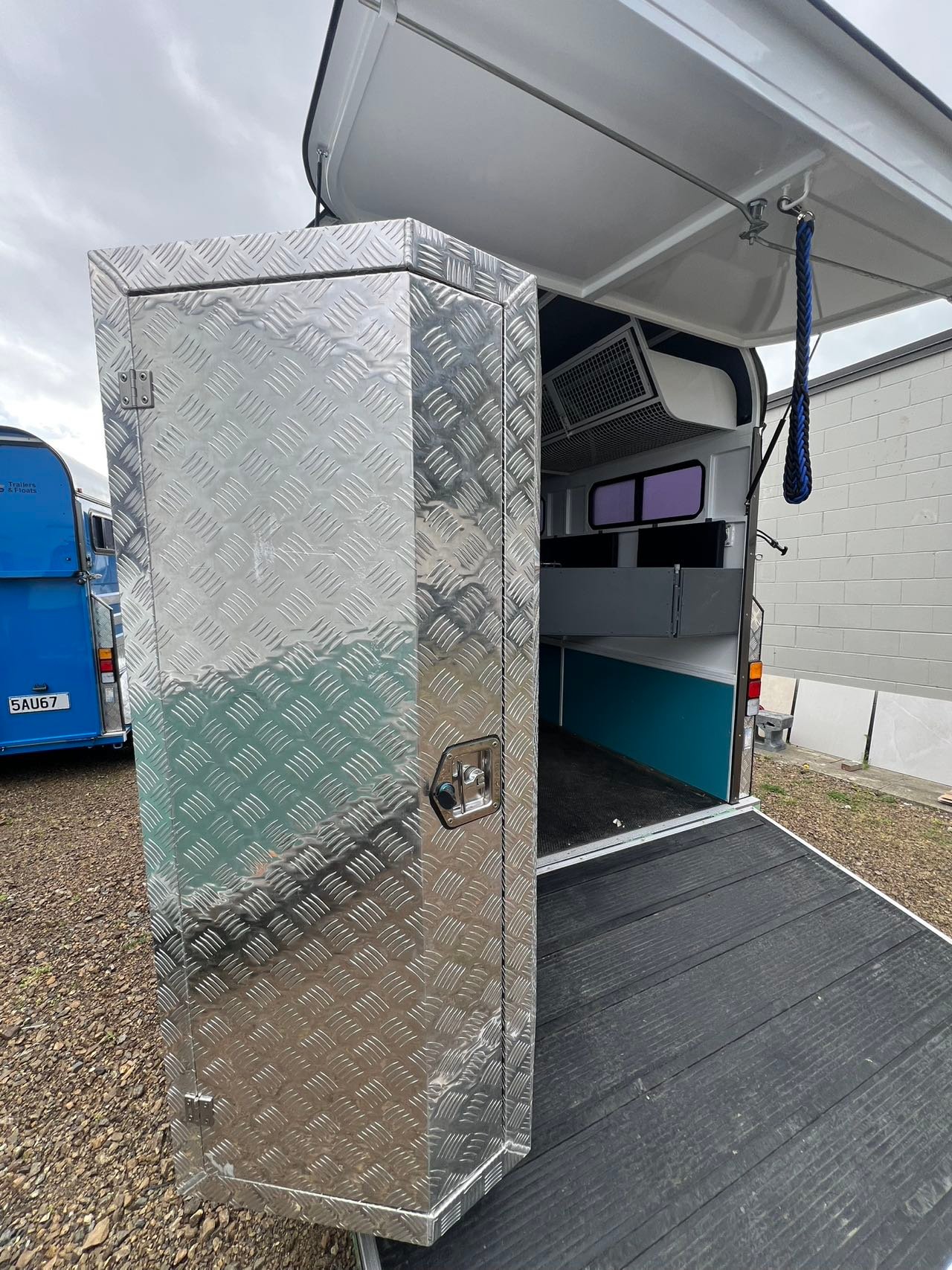

Tack box: Swing out in back (1500mm Height)
Storage Box: Above the horse area
Painting: PPG Automative painting
Overall Dimensions: 5425x2490x2600mm
Body Dimensions: 4575x1980x2230mm
Internal Dimensions:4525x1930x2155mm
Tare Mass : 1600KG
GVM : 3500KG
