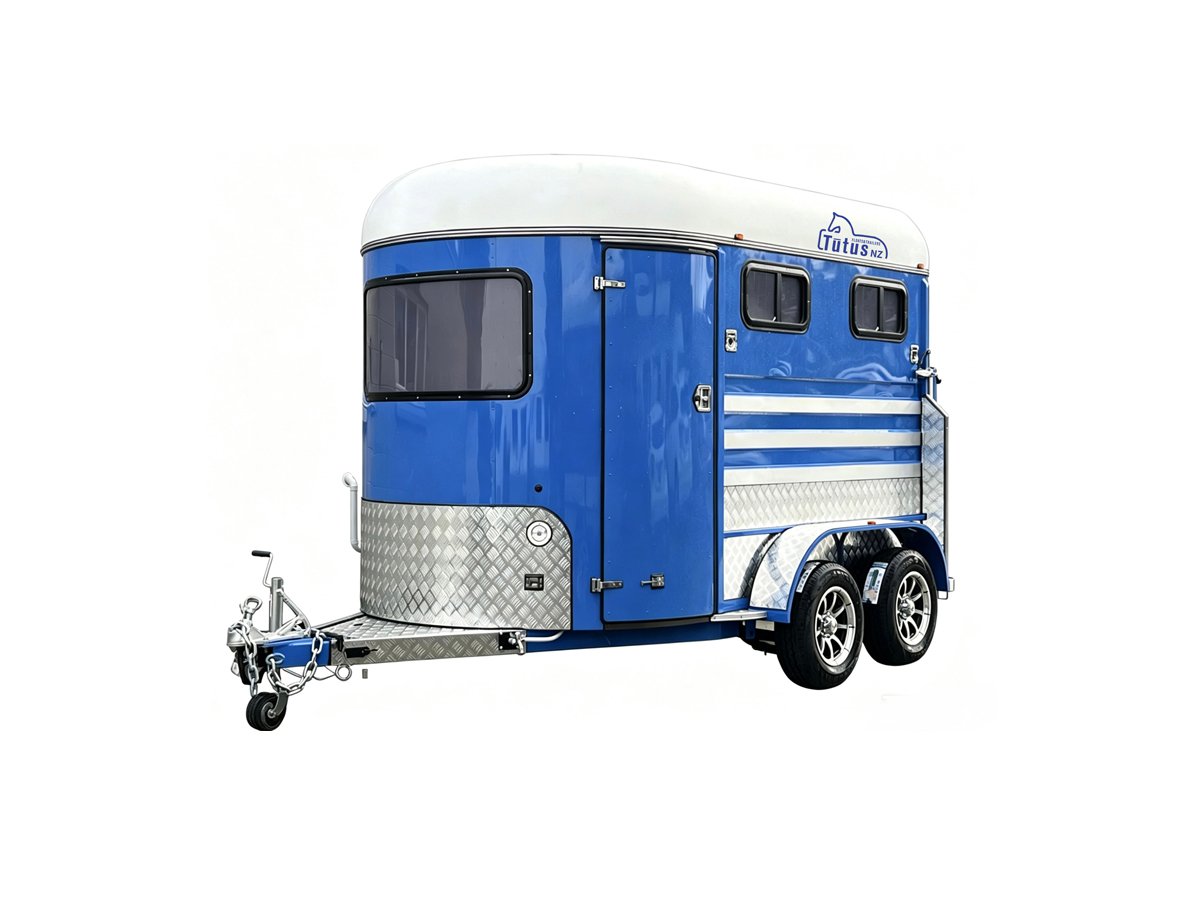

2HAL- Standard 3260

Construction

• Extra fully hot-dip galvanized chassis
• Double-side galvanized steel sheet (1.5mm)
• Stainless steel Nuts and bolts
• Special molded FRP 3,260 x 1,980 x 3mm
• TUFF Board flooring withanti slip full-sheet rubber matting
• Aluminum checker plate front guard
• Aluminum checker plate mudguard pedal & step
• water tank with external tap

On Road

• Axles: Two special 50 × 50mm axles
• Suspension: 8-leaf tandem rocker-roller suspension
• Double axle electric brakeswith hand brake
• Breakaway system
• 14inch aluminum alloy rims
• Japanesebearing
• 185R 14LT tyres
• 50mm ball coupling
• Aluminum checker plate draw barprotector
• Safety chain with shackles
• Heavy-duty double wheels swing-up jockey wheel

Windows & Doors

• 1× Tinted front window 1220 × 610mm
• 2× side windows with fly screen on each side
• 2× pop up air vents
• Ramp door and dust door with High-intensity anti-rust gas struts
• Special 6mm copper hinges
• High quality stainless steel door locks, latches and tie hooks.
• internal roof lining

Lighting (All LED)

• 2× interiorlights
• 1× high stop light
• 2× taillights
• 1× license plate light
• 6× side marker lamps

Horse Area

• Fully padded dividers
• Horse rings: 2 inside + 4 outside
• Storage box above horse area
• Swing-out rear tack box (1200mm height)
• bay size: 2200×720

Paint & Colour

• PPG automotive paint finish
• On a new order you have the choice of any colours you wish, free of charge.

Dimensions

• Overall: 4110 × 2490 × 2600mm
• Body: 3260 × 1980 × 2230mm
• Internal: 3210 × 1930 × 2155mm
• Tare weight: 1250kg
• GVM: 3300kg
